Navigator™ 500
Description
The RealWear Navigator 500 is the next generation rugged monocular smart glass that empowers modern frontline workers with remote expertise. The AR headset can be operated hands-free thanks to its excellent voice control. The Navigator 500 is ideally suited for use in inspections, maintenance or repairs. Companies benefit from more effective and cost-efficient workflows by using the device.
The RealWear Navigator 500 has the following advantages:
First, the RealWear Navigator 500 can be operated hands-free through the use of voice control. The device has the best voice control on the market and the noise-canceling microphones can filter out ambient noise up to 100db. By using the noise-canceling microphones, the frontline workers can still be well understood by remote experts even in the noisiest of environments.
Second, the Navigator 500’s camera can shoot pictures with a resolution of 48 MP. No other smart glass on the market has this high megapixel count, which matches that of professional cameras. It also has 1080p video quality and now supports 60 frames per second. This video quality ensures smooth images even during faster movements of the worker and enables high-resolution remote support sessions.
Third, the RealWear Navigator 500 is made for use in heavy industry due to its safety certificates. Thanks to IP66 certification, the device is protected from dust and water ingress. In addition, the Navigator 500 has been drop tested for falls from up to 2 meters.

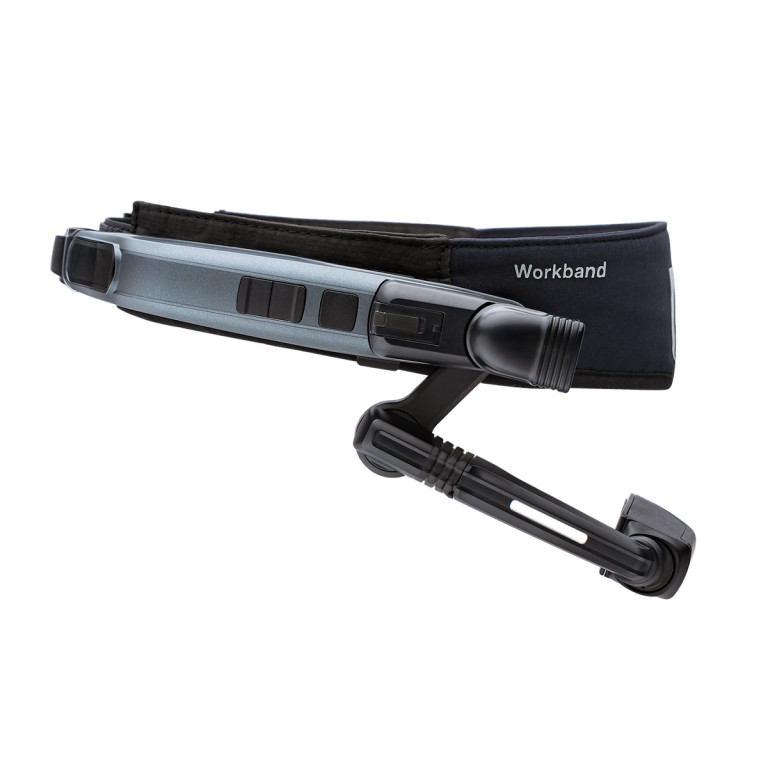

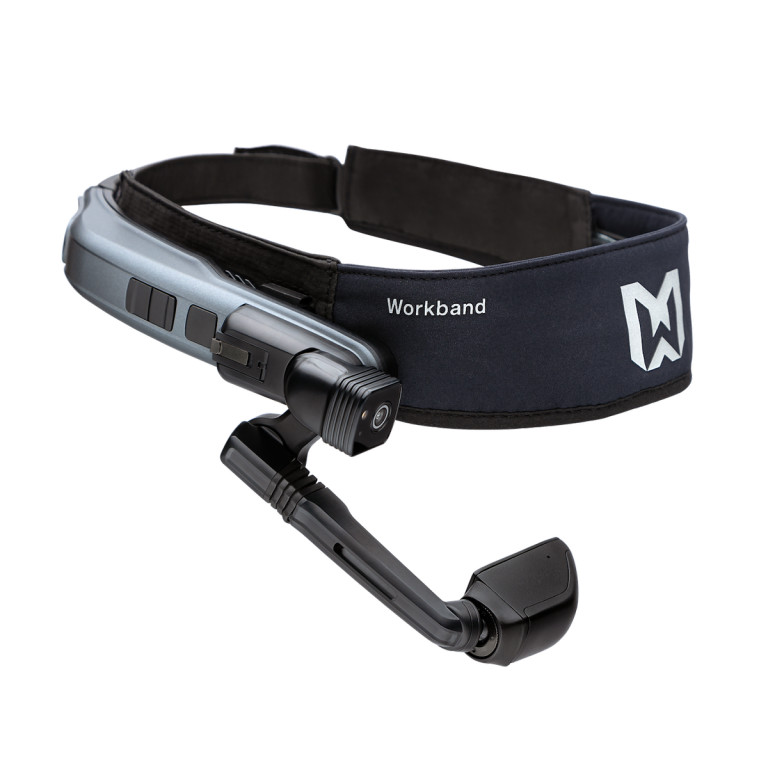

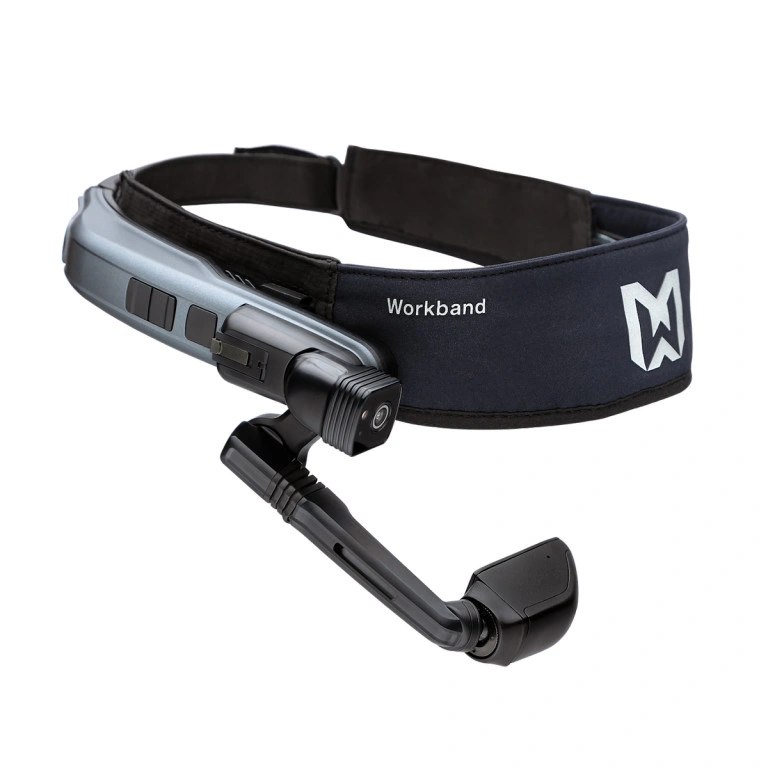

Fourth, the RealWear Navigator comes standard with the RealWear workband, making it comfortable to wear for extended periods of time. To make the device even more comfortable, the weight of the Navigator 500 has been reduced from 380 grams to 272 grams compared to the RealWear HMT-1.
Fifth, the processor and RAM have been improved compared to the HMT-1. The newer Snapdragon 662 is installed in the RealWear Navigator along with 4 GB of RAM. This allows even more demanding applications to be run.
Sixth, the boom arm of the RealWear Navigator can now be adjusted even more easily and ensures that the display can be adapted better to the user’s eye. This ensures that the screen fits perfectly with any head shape and allows the display to be seen clearly.
Here's What RealWear Partners Are Saying:
|
Device specifications |
|
|
Operating System |
Android 11 (AOSP) + WearHF™ hands-free interface + Enterprise features |
|
Chipset |
2.0GHz 8-core Qualcomm® Snapdragon™ 662 with Adreno 610 GPU – OpenGL® ES 3.2 & OpenCL™ 2.0 |
|
Memory |
64GB internal storage / 4GB RAM / MicroSD slot (max card supported 512GB) |
|
Weight |
9.42oz / 270g |
|
Ruggedization |
IP66, MIL-STD-810H, 6.5 feet / 2-meter drop |
|
Dedicated Buttons Ports |
Power button (with integrated fingerprint sensor) |
|
Boom Arm |
Adjusts six ways for most head sizes, left or right eye compatible, display can be moved out of way when not in use |
|
Operating Temperature, Humidity |
-4° F to +131°F / -20° C to +55° C, 5% to 95% relative humidity (non-condensing) |
|
Included Applications |
Document Navigator, Camera with Barcode Reader, Audio Recorder, Video Recorder, Webpage Viewer, Cloud Sync, Media Player, Calculator, Pedometer, Timer |
|
Languages Supported
|
Chinese (Cantonese, Mandarin-Simplified and Traditional), Czech, Dutch, English (American, Australian, British), French, German, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Thai |
|
Sign-in Options |
Companion App, Voice Keyboard with secure mode |
|
Connectivity & Sensors |
|
|
Bluetooth |
Bluetooth® 5.1 |
|
Wi-Fi |
802.11 a/b/g/n/ac – 2.4 GHz and 5GHz |
|
GPS and Location |
GPS, Glonass, BeiDou, Galileo, QZSS, and SBAS NavIC support Dual-Frequency GNSS (L1 + L5) Qualcomm® Sensor-Assisted Positioning IMU— Head Movement Tracking 3 IMUs (including 3-axis accelerometers, gyroscopes, eCompass) |
|
Battery |
|
|
Capacity |
2,600mAh/10.0 Wh Li-polymer, rechargeable, hot-swappable |
|
Security |
|
|
Security |
Qualcomm® Trusted Execution Environment, Crypto Engine, Secure Boot |
|
Display |
|
|
Type |
20° field-of-view, 24-bit color LCD, 0.32-inch diagonal, outdoor visible |
|
Resolution |
WVGA (854X480) |
|
Audio |
|
|
Microphone |
4 Digital microphones with active noise cancellation Accurate voice recognition in noise up to 100 dBA |
|
Speaker |
Internal 94 dBA loudspeaker |
|
Camera |
|
|
Still Image |
48MP Sensor, PDAF with LED flashlight |
|
Video |
Up to 1080p @ 60fps, video stabilization Codecs: VP8, VP9, H.264, H.265 HEVC |
|
Compatibility |
|
|
PPE |

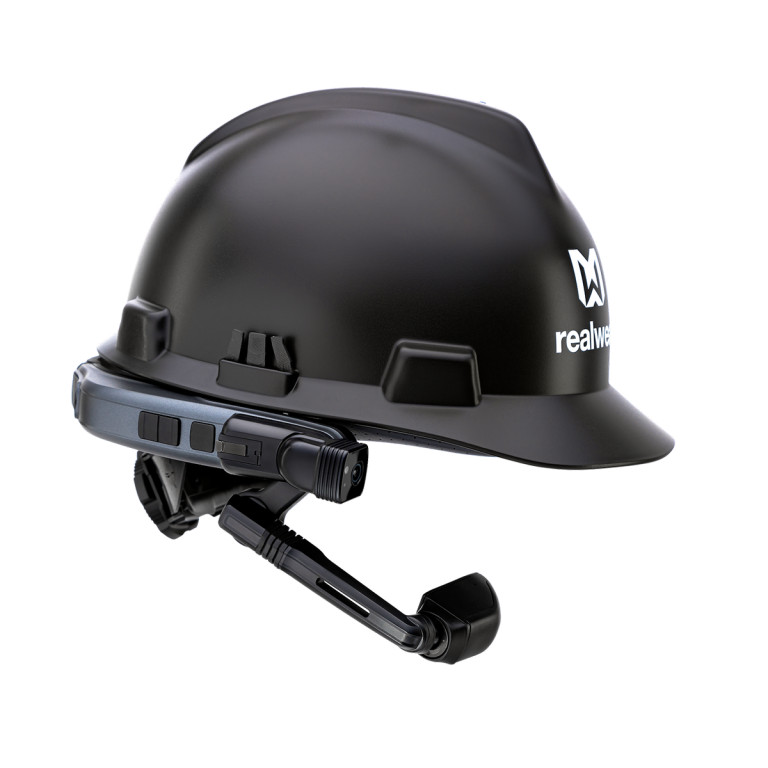

Works with many hard hats, protective eyewear, masks and more |
|
Warranty |
|
|
Warranty |
1 Year warranty Extended Service and Support Plans Available |
|
Accessories |
|
|
Included |
Workband, USB Type-C charging cable |
|
Cloud Services |
|
|
Foresight |
Accelerates centralized deployment and management of devices |
